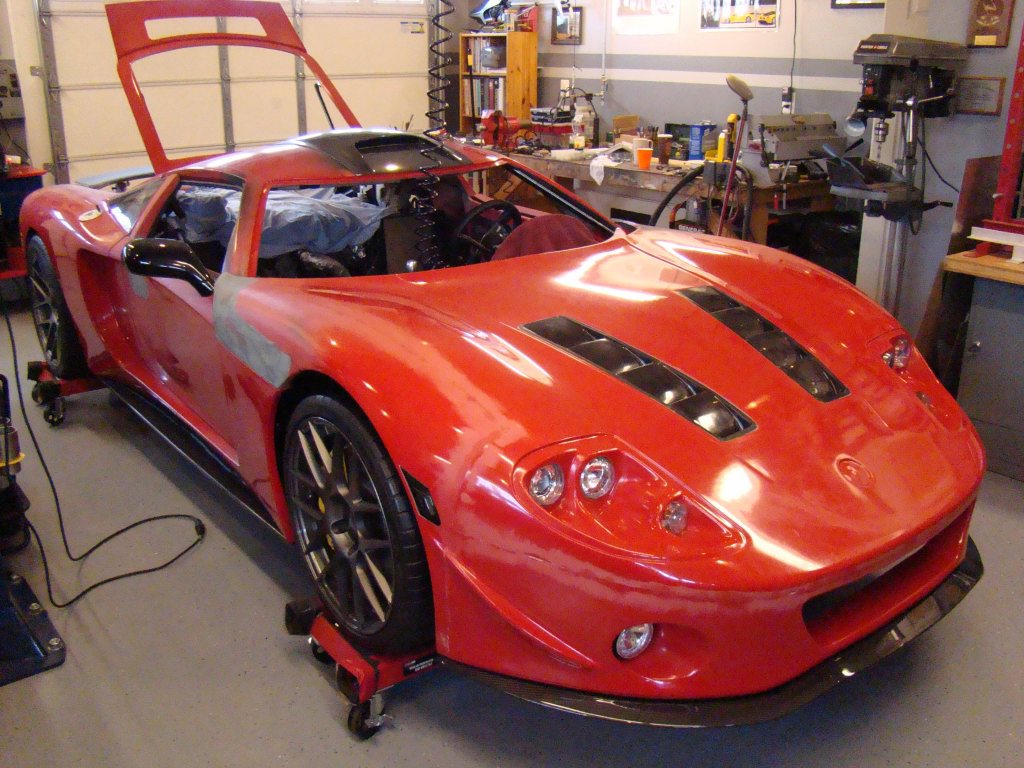

We received a great set of progress pictures from Infinitybox customer John. He is building a Factory Five Racing GTM and is wiring it with our Infinitybox system.
John is using our 20-Circuit Kit to power the main functions in the car. He also added inTOUCH NET so that he can control the car from a tablet mounted in the dash and from his smart phone.
John’s website has a lot of great pictures documenting the build of the car. This includes lots of good information on how he wired it with our Infinitybox system. Here’s a great picture of the MASTERCELL and the front POWERCELL located in the car.
This picture shows more detail on the location of the front POWERCELL.
The front POWERCELL is controlling the headlights, high-beams, front turn-signals, front running lights, horn, dash power and cooling fans. You can see how close these loads are located to the front POWERCELL. This will keep the total amount of wire needed to a minimum.
His rear POWERCELL is mounted just forward of the engine, at the back of the arm-rest. You can see it here.
This rear POWERCELL is controlling the power to the LS7 ECU, the starter solenoid, the fuel pump and all of the lights in the back of the car. Again, our multiplexing technology lets John eliminate a lot of the wire required in this car.
Thanks for John for sharing these pictures.
Click this link to contact our team to learn more about what the Infinitybox system can do for your car.
