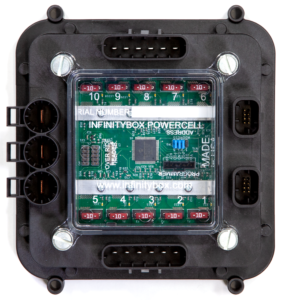

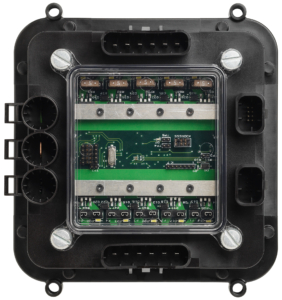

Infinitybox J1939 POWERCELL NGX Output Module (P/N 852-082A8)

The J1939 POWERCELL NGX gives you a modular and flexible power distribution unit. It uses solid-state MOSFETs on each output for rugged and durable control. You can connect any J1939 input device to the POWERCELL to control the outputs. These include switch panels, touch screens and other J1939 enabled controllers.

The NGX designates our next generation product. We have added many refinements and enhancements to the POWERCELL NGX. The most significant is the addition of active current monitoring for every output. This gives our customers a powerful view into the operation of their vehicle electrical system. Use this current monitoring for active circuit protection, bulb-fault detection or predictive/preventative maintenance of your vehicles.

Learn More

Electrical Communication Connectors Configurability Materials Environmental Dimensions Downloads

Input voltage: 12 or 24 VDC Operation
Outputs per POWERCELL: 10
Output Technology: Smart MOSFET with active current monitoring
Maximum Current Per Output: 25-amps
Maximum Current Per POWERCELL: 125-amps
Output Switch Type: High-Side
PWM Nodes/POWERCELL: 8
Outputs protected against ESD and include suppression diodes for switching inductive loads
POWERCELL protected against Load Dump per ISO-16750-2

Communications Protocol: J1939 (CAN OPEN and other CAN options available upon request)
J1939 Data Rate Options: 250 / 500 and 1,000 kb/s (User selectable)
Standard PGN’s: User Selectable (FF00 to FF15) (Other options available upon request)
Simple CAN Messaging Structure to Control Outputs
Active Current Monitoring: Periodic broadcast for each output in 0.125 A increments
Voltage & Temperature Monitoring: Periodic broadcast of system voltage and cell temperature

POWERCELL Output Connector: Delphi/Aptiv Metripack 280 6-Way Sealed Connector
POWERCELL Power Input Connector: Delphi/Aptiv Metripack 800 1-Way Sealed Connector
POWERCELL CAN Connector: Delphi/Aptiv 100W Micropack 8-Way Sealed Connector

Infinitybox stocks all the necessary connector parts and terminals for our products. Custom connector kits are available to build all required harnesses. Contact our team for more details.

POWERCELL PGN: Set by hardware jumper (FF00 to FF15)
POWERCELL Output Behavior: Set by CAN message sent to POWERCELL. Simple options for pulse-width modulation and soft-starting for inductive loads.
POWERCELL J1939 Data Rate: 250, 500 and 1,000 kb/s. User selectable.
POWERCELL Outbound Status Broadcast Rate: 250, 500 and 1,000 milliseconds. User Selectable.
Pulse Width Modulation Frequency: 200 Hz. Other frequencies available upon request.

POWERCELL Housing Material: Glass Filled Nylon 6 6/6
POWERCELL Cover Material: Clear High-Temp Polycarbonate
All Materials 94V-0

POWERCELL Operating Temperature Range: -40 C to 125 C
Ingress Protection: IP65
All materials tested to meet automotive chemical exposure, salt spray and salt fog

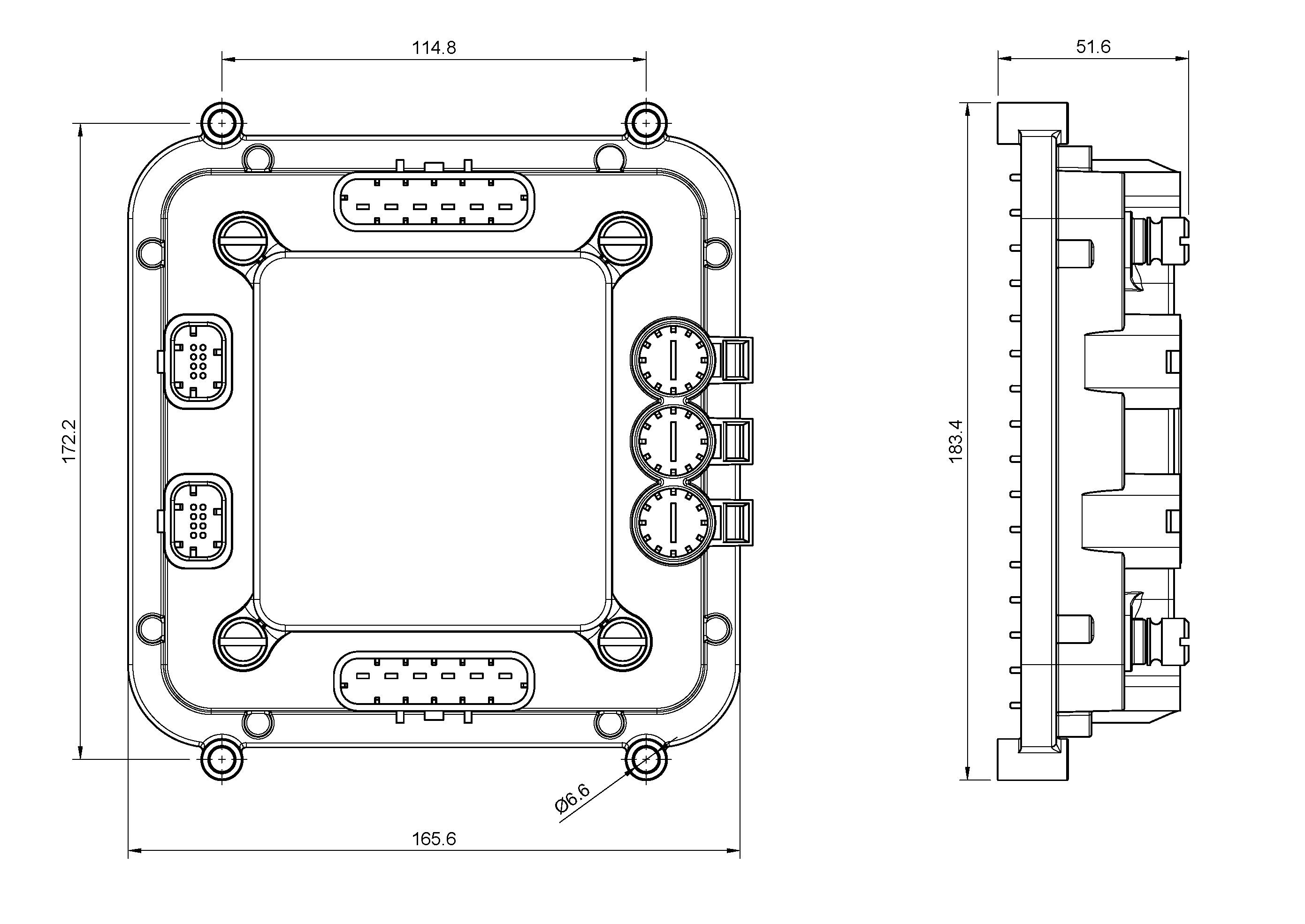

Outline dimensions for Infinitybox POWERCELL NGX

Dimensions in millimeters.

Infinitybox MASTERCELL NGX J1939 Input Module (P/N 852-081A8)

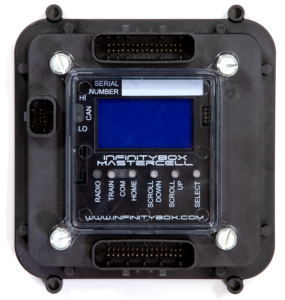

The MASTERCELL NGX is a flexible J1939 Input Controller. It has 38 ground switched inputs, 8 high-side switched inputs, 1 analogue input and two frequency based inputs. It also has 8 high-side outputs for local control of low-current indicators. The CAN messaging for each input and output is easily configurable through a simple laptop application. This configuration also includes logic capability and conditions on the off & on-state for all switches. The MASTERCELL NGX includes a high-visibility LCD screen for powerful troubleshooting and diagnostics of the J1939 system.

Learn More

Electrical Communication Connectors Configurability Materials Environmental Dimensions Downloads

Input voltage: 10.0 to 18.0 VDC
Total Inputs: 38
- 32 Ground Switched Inputs
- 6 Positive Switched Inputs
Frequency-Based Inputs: 2 (Engine Speed and Vehicle Speed Sensor)
Analogue Inputs: 1 (0 to 5 volt)
Low Current Outputs for Indicators: 8 High Side Outputs
Total Output Current Draw: 4 amps over 8 outputs
MASTERCELL protected against Load Dump per ISO-16750-2

Communications Protocol: J1939 (CAN OPEN and other CAN options available upon request)
J1939 Data Rate Options: 250 / 500 and 1,000 kb/s. Selectable over J1939
CAN Messages can be assigned to each input. Programmable over J1939
Integrated inSIGHT LCD screen for set up, troubleshooting and diagnostics

MASTERCELL Input Connector: Delphi/Aptiv 100W Micropack 32-Way Sealed Connector (A & B keyed differently)
MASTERCELL CAN Connector: Delphi/Aptiv 100W Micropack 8-Way Sealed Connector

Infinitybox stocks all the necessary connector parts and terminals for our products. Custom connector kits are available to build all required harnesses. Contact our team for more details.

MASTERCELL Outbound Status Broadcast Rate: 250, 500 and 1,000 milliseconds. User Selectable.
Outbound message CAN ID and CAN Messaging can be assigned to each input. Messages programmed over J1939.
Programmable logic can be set for inputs. Programming performed over J1939.

MASTERCELL Housing Material: Glass Filled Nylon 6 6/6
MASTERCELL Cover Material: Clear High-Temp Polycarbonate
All Materials 94V-0

MASTERCELL Operating Temperature Range: -40 C to 85 C
Ingress Protection: IP67
All materials tested to meet automotive chemical exposure, salt spray and salt fog

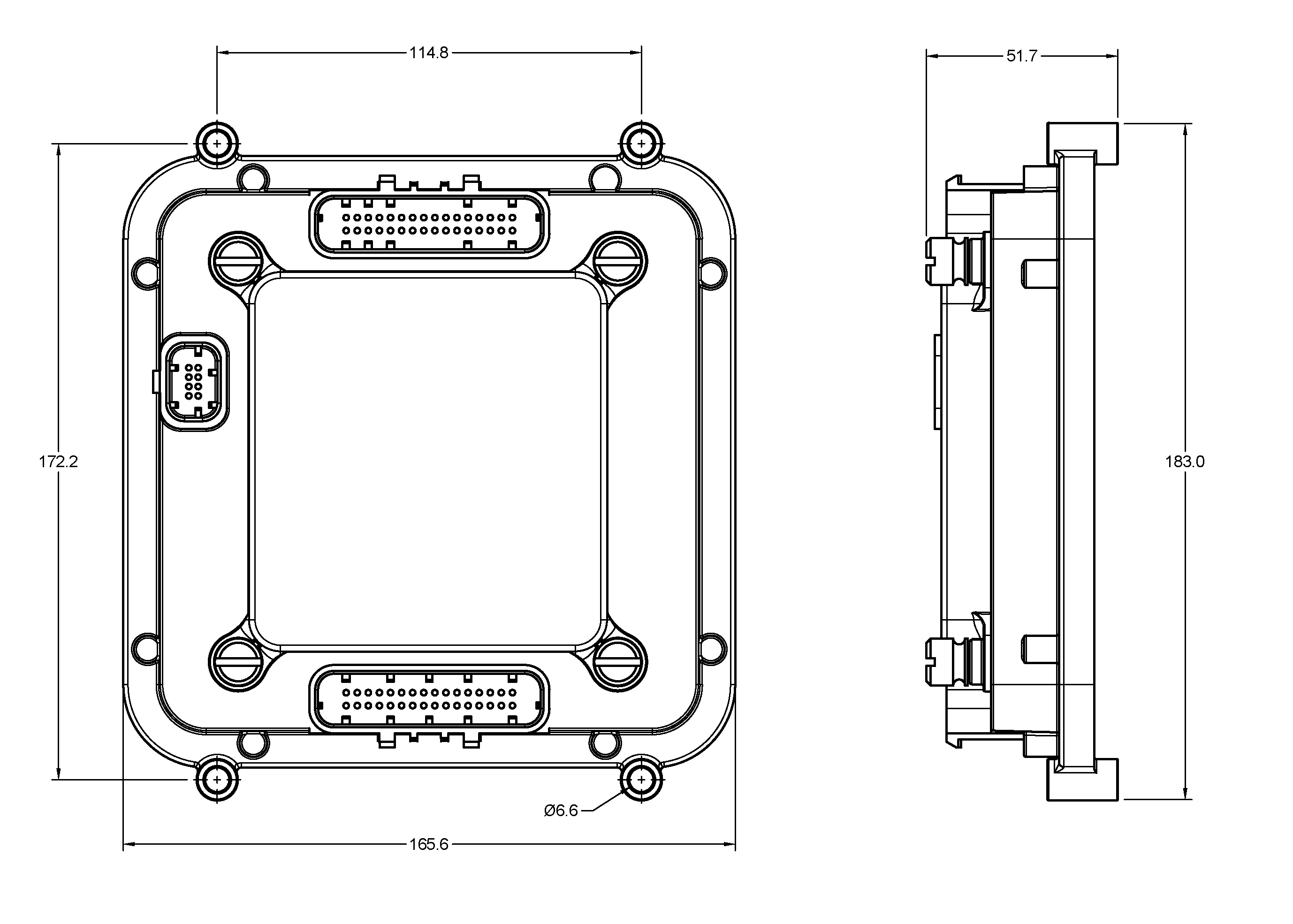

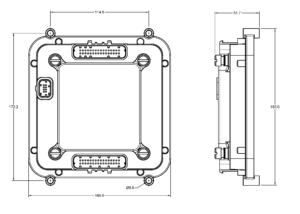

Outline dimensions for Infinitybox MASTERCELL NGX

Dimensions in millimeters.

Click here to download the technical datasheet for the Infinitybox MASTERCELL NGX

Infinitybox inMOTION NGX J1939 Door Control Module (P/N 852-086A8)

The Infinitybox inMOTION NGX Door Control Module is a unique product in the commercial truck market. It offers 2 h-bridge relays, 4-outputs and 8-inputs in a rugged and compact module. It is intended to be mounted in a door to provide local control of power locks, power windows and low-current indicator lights. It has 8 inputs to provide local control plus to send J1939 messages to other devices on the network. This can simplify the wiring in doors for vehicle manufacturers and custom cab fabricators. The only wiring required to go to the door is power, ground and the two CAN data wires. This also has broad applications in custom vehicles where reversing and polarity control are needed.

Learn More

Electrical Communication Connectors Configurability Materials Environmental Dimensions Downloads

Input voltage: 10.0 to 18.0 VDC
Polarity Control: 2 H-Bridge Relays
H-Bridge Current Capability: 15-amp intermittent use. 7.5-amp continuous
MOSFET Outputs- 4
MOSFET Output Current Capability; 1-amp each, up to 4-amps total
Total Inputs: 8 Ground Switched
Current Monitoring on each H-Bridge Pair and for all outputs
inMOTION NGX protected against Load Dump per ISO-16750-2

Communications Protocol: J1939 (CAN OPEN and other CAN options available upon request)
J1939 Data Rate Options: 250 / 500 and 1,000 kb/s. Selectable over J1939
CAN Messages can be assigned to each input. Programmable over J1939
Current values and cell voltage broadcast periodically over J1939 network

inMOTION NGX Power & Output Connector: Deutsch / TE Connectivity
- Connector: DTM06-12SA
- Wedgelock: WM-12S
- Terminal: 1062-20-0622
inMOTION NGX CAN & Input Connector: Deutsch / TE Connectivity
- Connector: DTM06-12SB
- Wedgelock: WM-12S
- Terminal: 1062-20-0222

Infinitybox stocks all the necessary connector parts and terminals for our products. Custom connector kits are available to build all required harnesses. Contact our team for more details.

inMOTION NGX Outbound Status Broadcast Rate: 250, 500 and 1,000 milliseconds. User Selectable.
Outbound message CAN ID and CAN Messaging can be assigned to each input. Messages programmed over J1939.
Outputs can be set to shut off based on current limit. Configurable over J1939.

inMOTION NGX Housing and Connector Material: Glass Filled Nylon 6 6/6
All Materials 94V-0

inMOTION NGX Operating Temperature Range: -40 C to 85 C
Ingress Protection: IP67
All materials tested to meet automotive chemical exposure, salt spray and salt fog

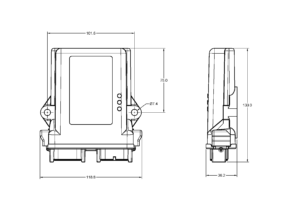

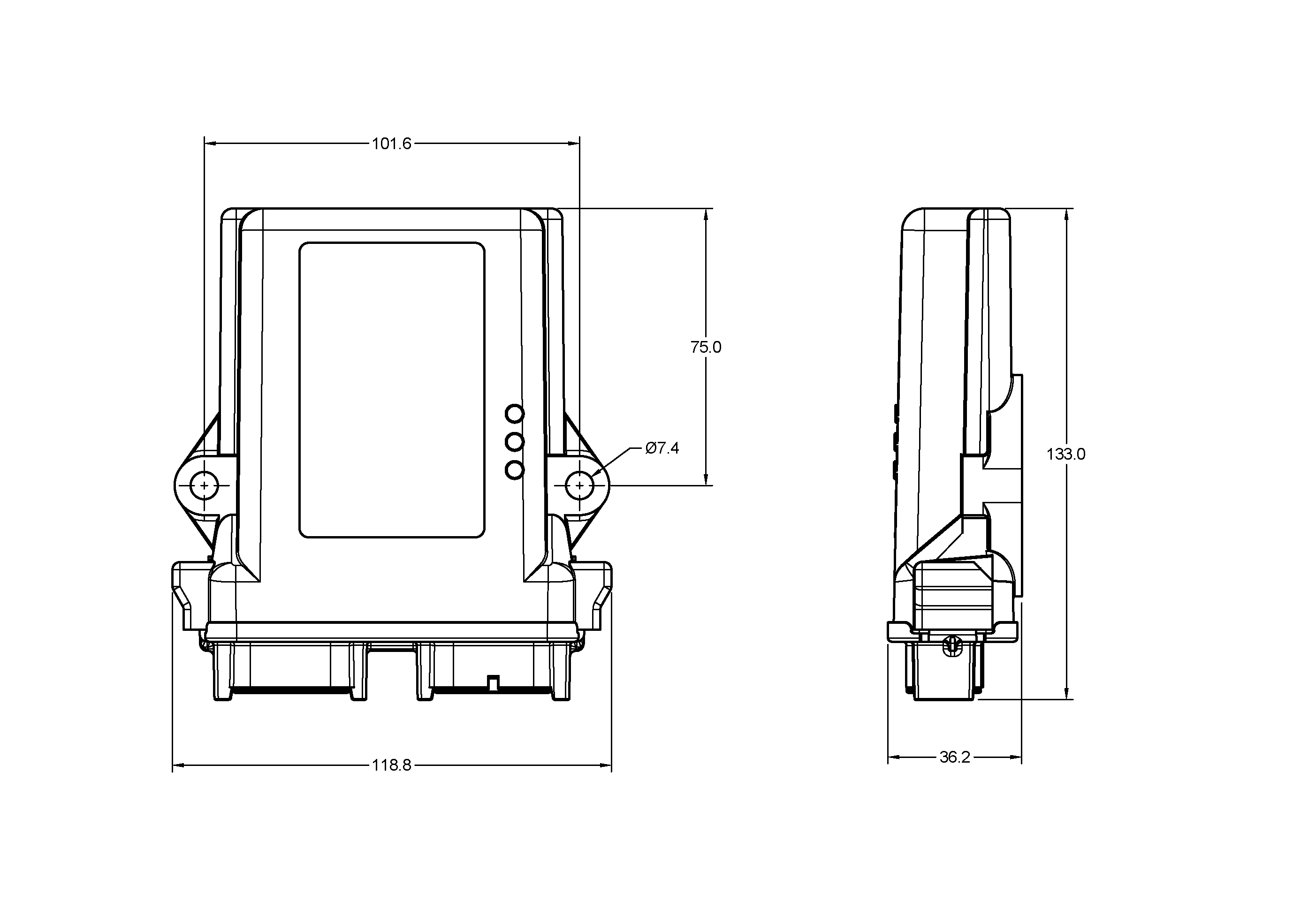

Outline dimensions for Infinitybox inMOTION NGX

Dimensions in millimeters.

Click here to download the technical datasheet for the inMOTION NGX
