Infinitybox Express Kit Video

/0 Comments/in /by

Our Infinitybox Express Wiring Kits are a powerful but simple way to wire any race car.  We have versions for track cars and drag cars.  They give your the power and control to switch your ignition, starter solenoid, fuel pumps, electric water pumps, cooling fans, telemetry, data acquisition, lights, trans brake and line lock solenoids plus other accessories.

The kit includes one of our solid-state POWERCELLs, a pre-engineered switch panel plus an IOX switch interface.  You also get all of the universal wiring that you need to complete the harness.

Check out this video to see the details of our Infinitybox Express Kits.

You can contact our team for more information by clicking this link.



Side shot of Player's LTD Camaro wired with Infinitybox Express Track Car Kit

Players LTD Camaro

/0 Comments/in /by

For those who were following us early on in our history, we did a lot of work with James Shipka and his One Lap of America Camaro.  We really cut our teeth on this car and learned a lot about the business.

James and his team came back to us last year with another race car project.  This one is pretty unique.  James found a Camaro originally built for the Player’s LTD series.  General Motors built these cars specifically for this race series and were driven at tracks all across Canada.  The main tracks were Shannonville, Grand Prix Molson, Race City, Mosport, Moslon Indy, Grand Prix de Trois-Rivieres, Westwood, Cayuga Speedway.  You can learn more about the cars and the race series by clicking this link.

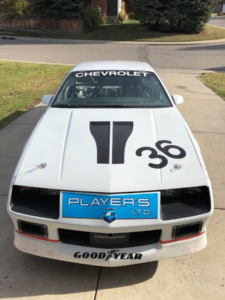

Front shot of Player's LTD Camaro wired with Infinitybox Express Track Car Kit

Front shot of Player’s LTD Camaro wired with Infinitybox Express Track Car Kit

James was looking for a powerful but simple electrical system for his restoration of this Player’s Camaro.  We recommended our Express Track Car kit.  This gives our customers everything that they need to wire all of the electrical functions of a race car.  It comes pre-configured to control your ignition, starter solenoid, lights, fuel pump, water pump and cooling fans.  At its heart, this kit starts with one of our POWERCELLs.  The kit also includes a pre-engineered CAN switch panel that mounts in your dash.  A simple 4-wire harness connects the switch panel to the POWERCELL.  Lastly, the kit also includes one of our IOX input modules for wiring simple switches into the system.

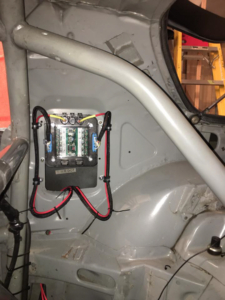

This picture shows the POWERCELL mounted behind the passenger door in the car.

POWERCELL Mounted in Player's LTD Camaro

POWERCELL Mounted in Player’s LTD Camaro

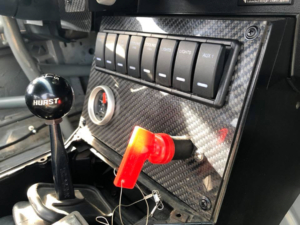

Here you can see the switch panel mounted in the center console.

Infinitybox Express Racing Kit switch panel mounted in Player's LTD Camaro

Infinitybox Express Racing Kit switch panel mounted in Player’s LTD Camaro

This is a very simple but powerful application of our products.

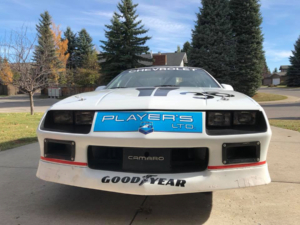

Front end of Player's LTD Camaro wired with Infinitybox Express Track Car Kit

Front end of Player’s LTD Camaro wired with Infinitybox Express Track Car Kit

You can follow the entire build series for the Player’s Camaro on Facebook.  Thanks to James and his team for sharing the pictures.  We’re proud to be a part of your project.

If you’d like to learn more about how our Infinitybox products can help you wire your car or truck, click here to contact our team.



In-process shot of Factory Five GTM being wired with the Infinitybox system

GTM410

/1 Comment/in /by

We received a great set of progress pictures from Infinitybox customer John.  He is building a Factory Five Racing GTM and is wiring it with our Infinitybox system.

John is using our 20-Circuit Kit to power the main functions in the car.  He also added inTOUCH NET so that he can control the car from a tablet mounted in the dash and from his smart phone.

John’s website has a lot of great pictures documenting the build of the car.  This includes lots of good information on how he wired it with our Infinitybox system.  Here’s a great picture of the MASTERCELL and the front POWERCELL located in the car.

MASTERCELL and front POWERCELL mounted in a Factory Five Racing GTM

MASTERCELL and front POWERCELL mounted in a Factory Five Racing GTM

This picture shows more detail on the location of the front POWERCELL.

Front POWERCELL in Factory Five GTM wired with Infinitybox System.

Front POWERCELL in Factory Five GTM wired with Infinitybox System.

The front POWERCELL is controlling the headlights, high-beams, front turn-signals, front running lights, horn, dash power and cooling fans.  You can see how close these loads are located to the front POWERCELL.  This will keep the total amount of wire needed to a minimum.

His rear POWERCELL is mounted just forward of the engine, at the back of the arm-rest.  You can see it here.

Rear POWERCELL in Factory Five GTM wired with the Infinitybox System

Rear POWERCELL in Factory Five GTM wired with the Infinitybox System

This rear POWERCELL is controlling the power to the LS7 ECU, the starter solenoid, the fuel pump and all of the lights in the back of the car.  Again, our multiplexing technology lets John eliminate a lot of the wire required in this car.

Thanks for John for sharing these pictures.

Click this link to contact our team to learn more about what the Infinitybox system can do for your car.
