Example of an IDIDIT steering column with turn signal stalk.

IDIDIT Mustang Steering Column Wiring

Wiring turn signals, 4-ways and the horn to the MASTERCELL in your Infinitybox system is very easy.  Our inputs can connect to the connectors of any steering column.  This blog post is going to cover the IDIDIT Mustang Steering Column wiring.  Specifically, this is for their 1965 & 1966 columns.

Before you go too far, be sure to read and understand the instructions for installing your column.  You can download the IDIDIT instructions for this Mustang column by clicking here.  IDIDIT gives you the connector components to plug directly into the original harness in your Mustang.  The difference with our Infinitybox system is that your MASTERCELL inputs are going to wire to the switches on the column.  The switches on the column become triggers to the MASTERCELL.  Our Infinitybox system takes care of the rest.

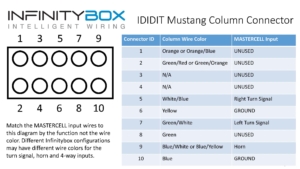

This diagram will show you which MASTERCELL input wires need to connect to the terminals on the IDIDIT column.

Picture of a wiring diagram showing how to wire the IDIDIT Mustang steering column to the Infinitybox MASTERCELL

Picture of a wiring diagram showing how to wire the IDIDIT Mustang steering column to the Infinitybox MASTERCELL

Please note that this diagram does not give you the MASTERCELL input wire colors.  You need to line up the function on the column to the wire color on your configuration sheet.  Depending on your system and your accessories, you may have different wire colors for your inputs.  Click on this link to learn more about your configuration sheet.

The connections between the Infinitybox MASTERCELL and the connector on the column are easy.  Essentially, you only need to connect the inputs for your left turn signal, right turn signal and the horn.  Then you need to ground two of the column wires to the chassis.  That’s it.

You can download a PDF version of this wiring diagram by clicking here.

Click this link to contact our technical support team with any questions.

Infinitybox Express Kit Video

Our Infinitybox Express Wiring Kits are a powerful but simple way to wire any race car.  We have versions for track cars and drag cars.  They give your the power and control to switch your ignition, starter solenoid, fuel pumps, electric water pumps, cooling fans, telemetry, data acquisition, lights, trans brake and line lock solenoids plus other accessories.

The kit includes one of our solid-state POWERCELLs, a pre-engineered switch panel plus an IOX switch interface.  You also get all of the universal wiring that you need to complete the harness.

Check out this video to see the details of our Infinitybox Express Kits.

You can contact our team for more information by clicking this link.



Jeep YJ After Restoration and Rewiring with Infinitybox

JEEP YJ

Our Infinitybox system can used to wire practically any car, truck or vehicle.  It is designed to stand up to the abuse of the harshest off-road, off-highway and commercial vehicle applications.  Here’s another great off-road example.  Sam P. is an Infinitybox customer who was building a JEEP YJ for a customer.  Here’s a picture of the Jeep as he first received it.

Jeep YJ Before Restoration and Rewiring with Infinitybox

Jeep YJ Before Restoration and Rewiring with Infinitybox

… and here is the finished product…

Jeep YJ After Restoration and Rewiring with Infinitybox

Jeep YJ After Restoration and Rewiring with Infinitybox

Sam needed a simple electrical wiring system for this Jeep.  He had all of the basics including ignition, starter, head lights, high beams, turn signals, flashers, brake lights, cooling fans and horns.  He also had extra trail lighting that he wanted to add.  The customer also wanted to take this off road so he needed a system that could handle the dust, dirt, moisture, shock and vibration.  Sam purchased our 20-Circuit Kit to get the job done.

His MASTERCELL is located behind the dash.

Here’s a picture of his front POWERCELL.  This is located just above where the transmission tunnel hits the firewall.

Front POWERCELL in Jeep YJ Rewire with Infinitybox System

Front POWERCELL in Jeep YJ Rewire with Infinitybox System

Here is a picture of his rear POWERCELL.  He fabricated a pocket in the back by the tailgate to keep the wiring protected.

Rear POWERCELL Mounted in a Jeep YJ wired with the Infinitybox System

Rear POWERCELL Mounted in a Jeep YJ wired with the Infinitybox System

The finished product is neat, clean and will thrive in the harshest of trail conditions.

If you have a car, truck of off-road vehicle that needs powerful & reliable wiring, check out the Infinitybox system.  Click this link to connect to our technical support team to talk through the details of your project.
