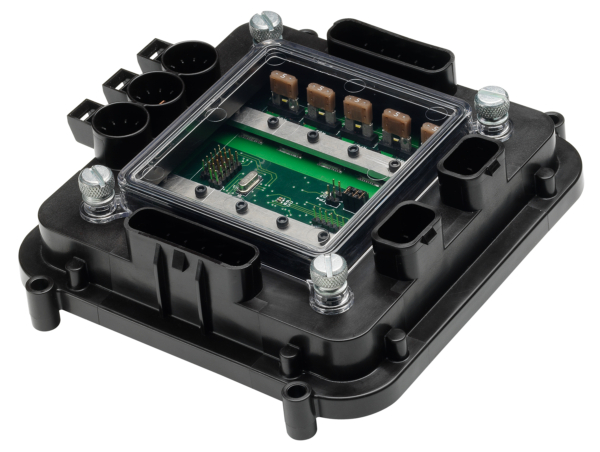

POWERCELL Output Controller Kit

Description

System Features

• Matched to the exact specifications of the POWERCELL control unit(s) that came with your 10 or 20-Circuit Kit.
• Up to 10 fuse protected outputs on the control unit. (each output rated at 25 Amps. Single POWERCELL control unit can supply up to 100 Amps continuously.)
• Plug & Play connections allow for easy installation and system testing.
• All mating electrical interfaces are standard Aptiv sealed connectors.
• Enclosures sealed with watertight gaskets for high performance in all driving conditions.
• All enclosures feature clear covers for easy system status checks and diagnostics.
• Heartbeat LEDs to indicate system connectivity and indicate output status.
• Rated to 125°C environment for installation anywhere in the vehicle.
• All plastics used in enclosures are UL 94V0. Bases are glass reinforced high-temperature nylon for strength and temperature resistance. Covers are high-temperature poly-carbonate for visibility and strength.

Kit Includes

• POWERCELL control unit with 10 outputs
• 2-Output harnesses with sealed connectors
• 1-CAN cable with sealed connectors on ends
• 2-Power input cables
• 1-Dummy power connector
• MEGA Fuse Kit
• Ring Terminals for use with MEGA Fuse kit
• Bag of Assorted Fuses

Technical Specifications

• Input voltage range: 9.0 to 16.0 VDC
• Maximum number of nodes: 10
• Output node technology: MOSFET (up to 25 Amps)
• Output switch type: High-Side
• PWM nodes: 8
• Maximum temperature: 125°C
• Built-in diagnostics status indicators on all output nodes
• Enclosures and connectors sealed to IP54
• Standard Delphi Packard connectors & terminals
• All materials UL 94V0

Solid models are available for the POWERCELL.  Contact Infinitybox technical support for more information.
