- All mating electrical interfaces are standard Aptiv sealed connectors.
- Enclosures sealed with watertight gaskets for high performance in all driving conditions.
- All enclosures feature clear covers for easy system status checks and diagnostics.
- Heartbeat LEDs to indicate system connectivity and indicate output status.
- All plastics used in enclosures are UL 94V0. Bases are glass reinforced high-temperature nylon for strength and temperature resistance. Covers are high-temperature poly-carbonate for visibility and strength.

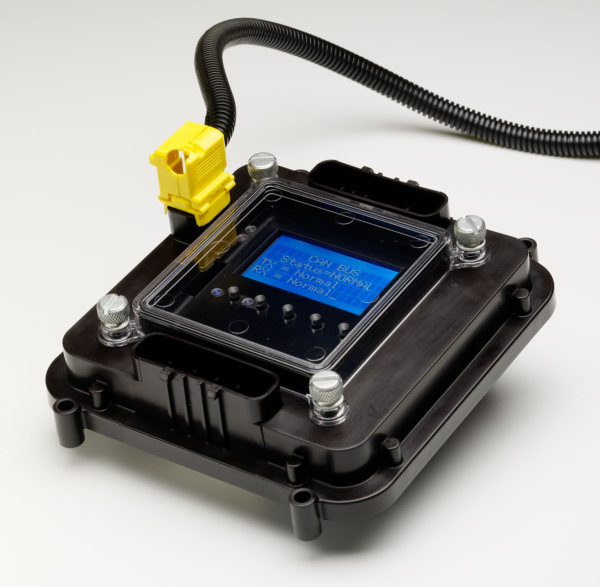

- MASTERCELL Input Control Unit
- 2 MASTERCELL Input harnesses with sealed connectors
- 1-CAN cable with sealed connectors on ends
- Input voltage range: 9.0 to 16.0 VDC
- Maximum number of inputs: 48
- Input switch type: Ground-Switched
- Maximum temperature: 85°C
- Built-in inSIGHT Diagnostic Screen
- Enclosures and connectors sealed to IP54
- Standard Delphi Packard connectors & terminals
- All materials UL 94V0
Solid models are available for the MASTERCELL. Contact Infinitybox technical support for more information.
