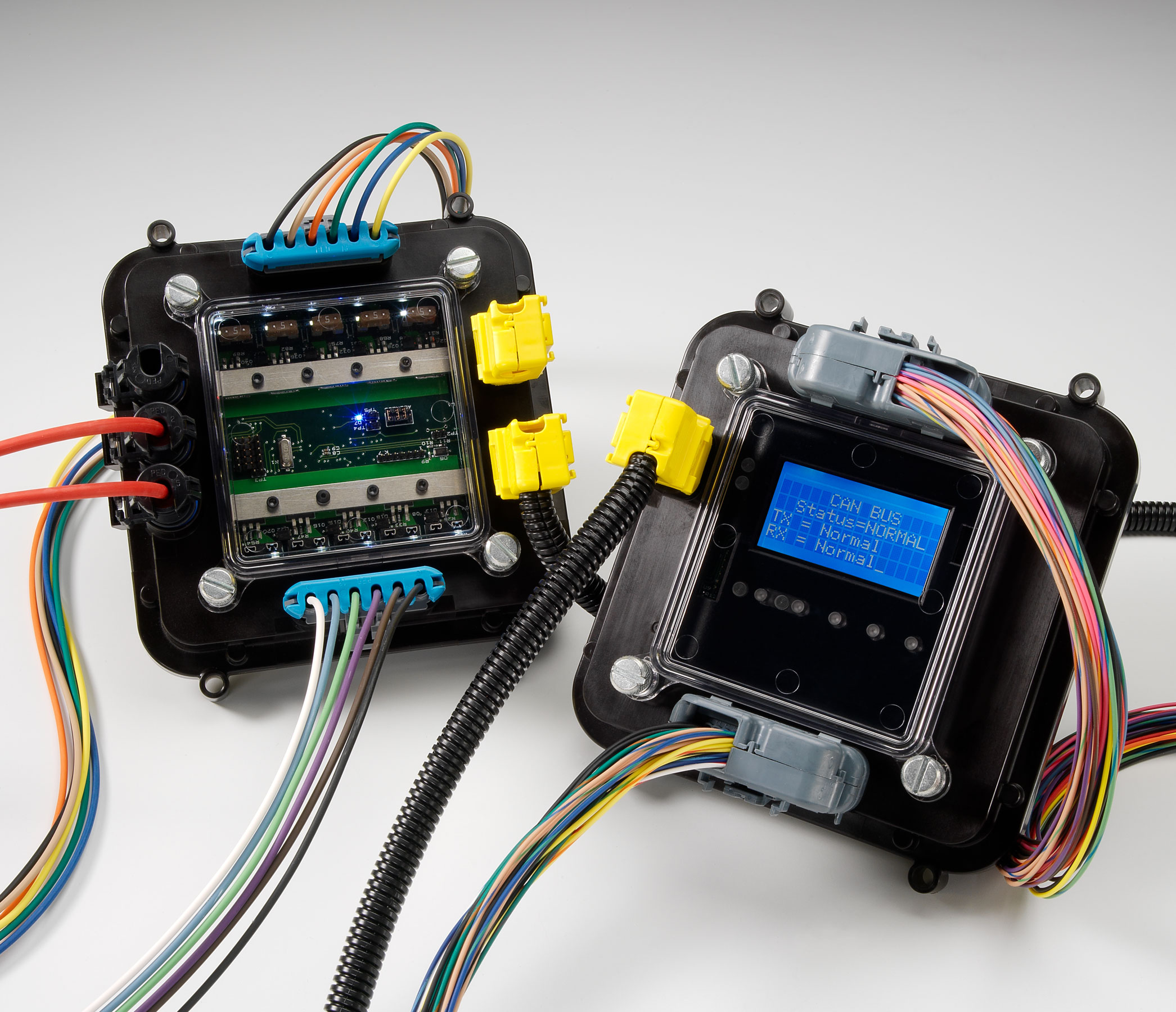

10-Circuit Wiring Harness Kit

Description

The Infinitybox 10-Circuit Kit is our basic system that uses our rock-solid CAN technology to revolutionize your electrical system.  The 10-Circuit Kit is our bare-bones system that is ideal for adding extra electrical features and functions to an existing off-road vehicle, truck, race car or other project.

Please note that the 10-Circuit Kit will not accommodate all the circuits required for street-legal operation of most vehicles.  Consult with the Infinitybox team on choosing the 10-Circuit Kit versus the 20-Circuit Kit.  Click on this link to learn the differences between the 10 and 20-Circuit Kits.

System Features:

• Up to 25 different inputs on the MASTERCELL input unit (multiple inputs can control a single output)
• Up to 10 fuse protected outputs on the POWERCELL. (each output rated at 25 amps. Single POWERCELL control unit can supply up to 100 Amps continuously.)
• Single MASTERCELL input unit can control up to 5 control units with up to 50 outputs (additional POWERCELL control units sold separately).
• Standard inSIGHT Diagnostic Module allows for instant checks of all circuit inputs and outputs for proper function.
• All mating electrical interfaces use OEM-grade sealed connectors
• MASTERCELL & POWERCELL enclosures sealed with watertight gaskets for high performance in all driving conditions.
• All enclosures feature clear covers for easy system status checks.
• Heartbeat LEDs to indicate system connectivity and indicate output status
• MASTERCELL input unit rated to 85°C
• POWERCELL control unit rated to 125°C
• All plastics used in enclosures are UL 94V0. Bases are glass reinforced high-temperature nylon for strength and temperature resistance. Covers are high-temperature polycarbonate for visibility and strength.
• All wires have high-temperature TXL insulation

Kit Includes:

• 1-MASTERCELL input unit
• 1-POWERCELL control units
• Input harness with sealed connector
• Output harnesses with sealed connectors
• 2-Way CAN cable with sealed connectors on ends
• Power Input cables
• Dummy power connectors
• Dummy input connector
• CAN Terminal Resistor
• Bag of Assorted Fuses
• MEGA fuse kit for battery protection
• Ring terminals for use with MEGA fuse kit
• Battery connector wire
• Installation Guide

Technical Documents:

Infinitybox 10-Circuit Kit Installation Manual

10-Circuit Kit Configuration Sheet

CAD models for the Infinitybox MASTERCELL and POWERCELL are available upon request.  Contact our team for more information.
