The Infinitybox Splice Saver Kit gives you an easy way to connect multiple accessories to a single POWERCELL output. Examples include powering your ECU, gauge power, stereo power and A/C power from a single ignition output. Other examples include lighting, locks and stereo power. You can power 5 separate wires from a single input wire. The internal buss bar can be split to create two separate circuits, each with a single input and two outputs. We also include 3 cavity plugs to seal any unused outputs.
The Splice Saver uses the same sealed 280 Metripack terminals and cable seals that are used in the POWERCELL and inMOTION output harnesses. The kit includes all the components needed to build a sealed junction point for your wiring harness. It also includes a mounting clip for a clean install in your harness.

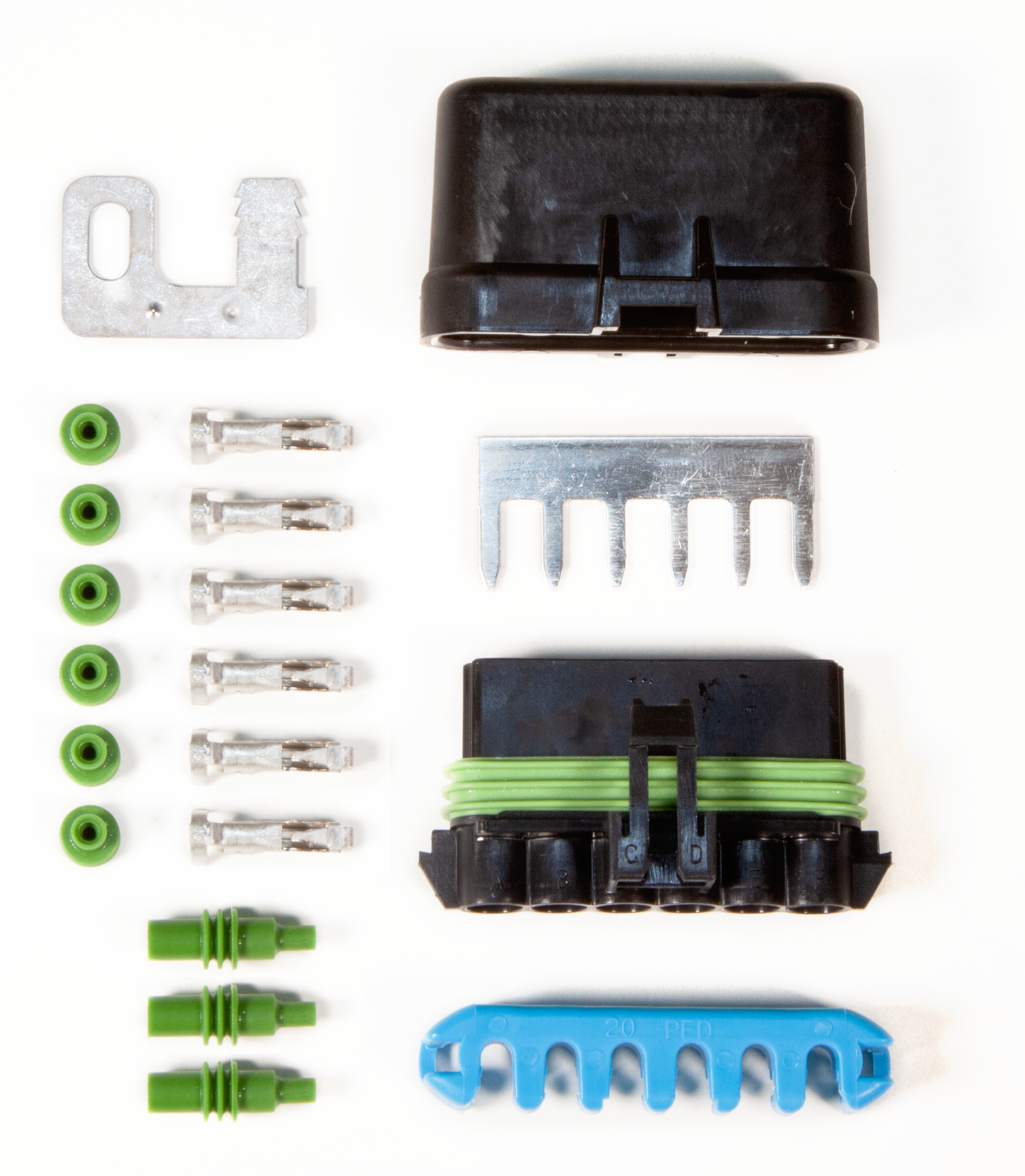

The Infinitybox Splice Saver Kit Includes:
(1) 6-Position Splice Saver Connector
(1) Splice Saver Sealed Cover
(1) 6-Position Terminal Position Assurance (TPA) Clip
(1) 6-Position Buss Bar
(1) Mounting Clip
(6) 280 Metripack Terminals
(6) 280 Metripack Cable Seals
(3) 280 Metripack Cavity Plugs
You can download the instructions for the Splice Saver Kit by clicking this link.
