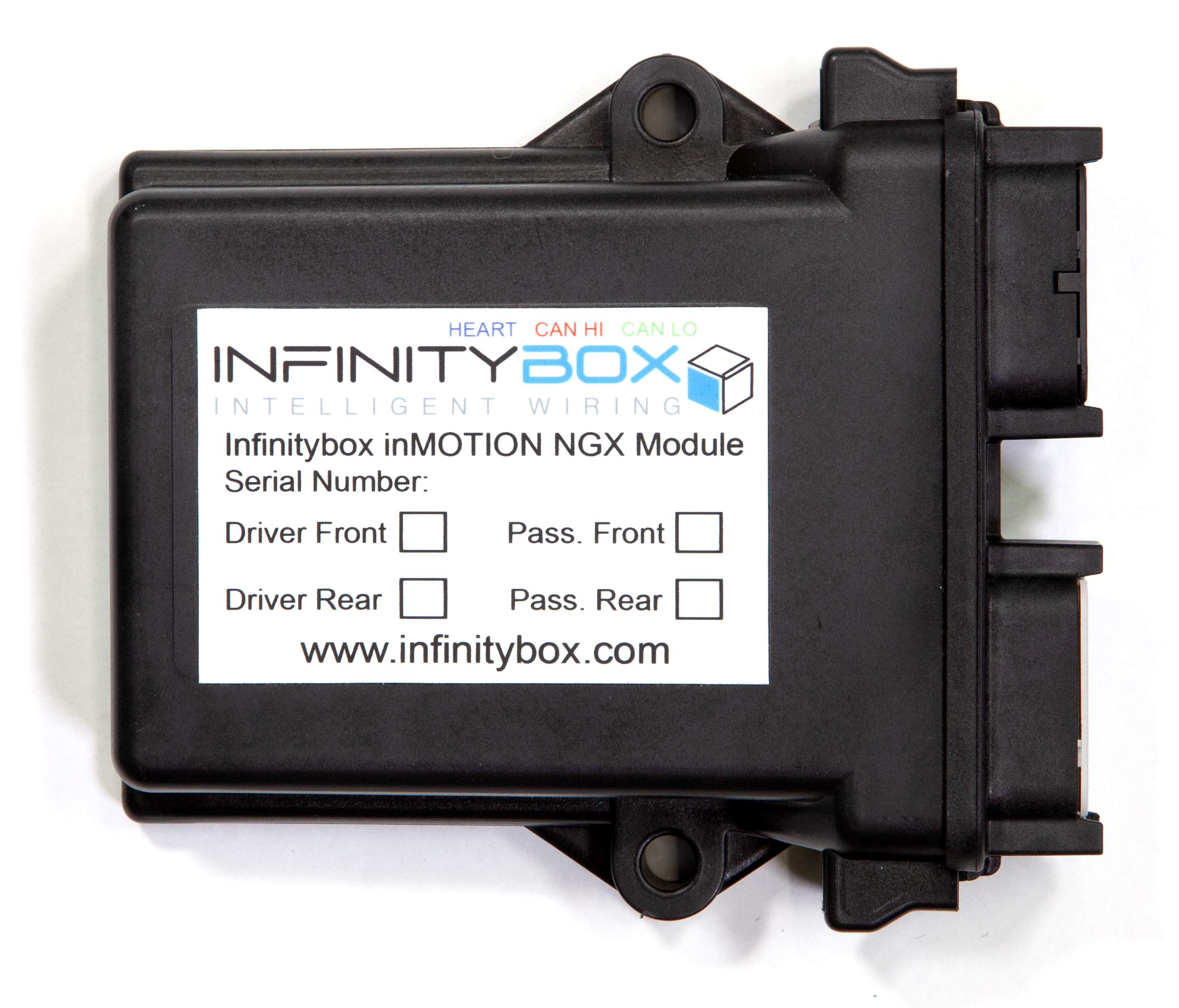

Infinitybox inMOTION NGX Power Window and Lock Controller Kit

Description

The inMOTION NGX Power Window and Lock Controller is the next generation of door control modules.  It takes the power and flexibility of the standard inMOTION cell and delivers it in a smaller package that can be integrated directly into the doors of your car or truck.  This dramatically reduces the number of wires you need to pass from through the door hinge back to the body of the vehicle.  You simply need power, ground and two thin data wires.  You would install 1 inMOTION NGX module in each of the doors of your car or truck.

Your power window motor and power lock actuator wire to the H-Bridge outputs on the inMOTION NGX module.  Your window and lock switches wire to the inputs on the same module.  You can also wire switches to the local inMOTION NGX module to control windows and locks wired to other inMOTION NGX modules installed in the other doors in the vehicle.  You can even control your windows and locks through a key fob or smart phone when you add inLINK NGX to your Infinitybox system (sold separately).

The inMOTION NGX module also has 4 low-current outputs that can be used to light indicators in your switches, interior lights in the door or puddle lights.

The inMOTION NGX comes with a standard configuration that controls all the key functions in your door but can be easily customized using the Infinitybox inCODE NGX programmer (sold separately).

NOTE: The inMOTION NGX Modules are Not Compatible with Legacy Infinitybox Systems and Hardware.

System Features:

• Seamless integration into an existing Infinitybox NGX J1939 CAN network.
• Designed to be installed directly in the door to simplify wiring for power windows and locks.
• 2 H-Bridge Circuits to control power window motor and power lock actuator.
• Integrated current monitoring for express window control and system safety.
• 8 local inputs to connect to switches in the door for complete power window and power lock control.
• 4 Low-Current Outputs with current monitoring for lighting and indicators in the door.
  • 1 amp maximum per output.  Current limited through software.
• All mating electrical interfaces are standard OEM-grade sealed connectors.
• Enclosures sealed with watertight gaskets for high performance in all driving conditions.
• Heartbeat LEDs to indicate system connectivity and indicate output status.
• Rated to 85°C environment in-cabin installation.
• All plastics used in enclosures are UL 94V0. Bases are glass reinforced high-temperature nylon for strength and temperature resistance. Covers are high-temperature poly-carbonate for visibility and strength.
• inMOTION NGX can be controlled from J1939 commands from any compatible interface.  J1939 commands available per request.
• User configurable with Infinitybox inCODE NGX programmer (sold separately)

Kit Includes:

• inMOTION NGX control unit
• Battery Power and Output Harness
• Switch Input and CAN harness
• Primary fuse holder for power wires
• Ring terminal for primary fuse holder battery power
• 2 ring terminals for primary fuse holder output power to inMOTION NGX module
• Installation guide

Technical Specifications:

• Input voltage range: 9-16.2 VDC
• Maximum number outputs
  • 2 polarity reversed pairs
  • 4 low-current outputs (1 amp each)
• Current Capability: 20-amps per pair (10% duty cycle)
• Maximum temperature: 85°C
• System learns current profile for outputs
• Standard Deutsch connectors & terminals
• User configurable with Infinitybox inCODE NGX programmer (sold separately)
• All materials UL 94V0

Solid models are available for the inMOTION Cell.  Contact our technical support team to learn more.
